White LED T8 Tubes, G13-BiPin, 2 Foot, Only 8 Watts
Fluorescent Equivalent, Series LED24T8
Premium Intensity LEDs • 100-290Vac • White 5000K, 4100K or 3000K Color
Energy-Efficient Drop-In Replacement (with line voltage bypassing ballast) for 2-Foot Fluorescent Bulbs
Warm White • Pure White • Consumes Less than 8 Watts
Uses G13 Medium Double-Ended 2-pin Base
Shopping Cart
View Cart
Check Out
T8, T12 (5mm LEDs) 8-ft T8 (5mm LEDs) 4-ft T8 (5mm LEDs) 2-ft T8 Frosted (SMD) 4-ft T8 CLEAR (SMD), 2ft T8 CLEAR (SMD), 4ft
T8 (5mm LEDs) 5-ft T8 (5mm LEDs) 3-ft T8 Frosted (SMD), 2ft T8, T12 Frosted (SMD), 8ft

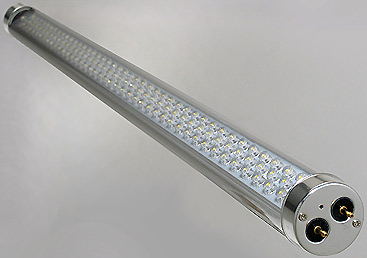

LED tube light fluorescent replacement
Three Year Warranty		LED illuminated office
Office illuminated with LEDtronics
LED fluorescent-replacement tube lights.
Click to enlarge
G13 bipin base
RoHS Compliant

Installation Instructions
Specifications
  • Part Numbers: LED24T8-108-TPW-001W, LED24T8-108-SIW-001W (see specs in table below)
  • Wide-Angle Beam Pattern
  • Line Input Voltage: 100-290VAC: 110/120VAC North American Currents, 220/240VAC European Currents, or 277VAC Currents
  • Energy Used: Less than 8 watts
  • Color Temperatures: Warm White or Pure Daylight White
  • Harmonic Factor: • Current; 16% Max.  • Voltage; 19.1% Max.
  • Ambient Humidity: ≤95%
  • Ambient Operating Temperature: ~-22°F to ~+122°F  [~-30°C to ~+50°C]
  • Lamp Shell: Polycarbonate Lens/Aluminum Body
  • Dimensions: L23.06" × DØ1.18" [L586mm × DØ30mm]
  • Weight: 0.70 lb  [318 g]
  • These LED tube lights are currently not dimmable
Features
Options
Applications
Contact Us
Email This Page
National Stock Number
Products on this page are




  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




Dimensions in inches [mm]
All Series under this Category:
  LED24T8-108 24", Replacement for Fluorescent Tubes
LED24T8-108-TPW Series   24" Length; Fluorescent-Replacement LED Tube
3000K Warm White, 100VAC to 290VAC, T8 Tube 30×601mm; G13 Bi-Pin Base1S777M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Module
length
(inches)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Maximum
Candela		Power FactorCRIColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
TO ORDER, CALL US
@ 800-579-4875 		LED24T8-108-SIW-001W
(100~290VAC,W.White,3000K,2FT {RE}) 		CALL 100-290VAC,
(Test @ 120VAC)		24-in.7.3W Typ 8.0W Max0.064 A72521 lm165cd0.96662800K~3200K    Warm White115°

5000K Pure White, 100VAC to 290VAC, T8 Tube 30×601mm; G13 Bi-Pin Base2S777M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Module
length
(inches)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Maximum
Candela		Power FactorCRIColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
TO ORDER, CALL US
@ 800-579-4875 		LED24T8-108-TPW-001W
(100~290VAC,P.White,5000K,2FT {RE}) 		CALL 100-290VAC,
(Test @ 120VAC)		24-in.7.3W Typ 8.0W Max0.064 A74590 lm180cd0.96754800K~5200K    True White115°

All specifications and pricing subject to change without notice.
 Features:
  • Lamp Warranty: 3 Years
  • Low Power Consumption: Less than 8 Watts
  • Long Operating Life: White LED 50,000+ Hours (5.7+ Years)
  • Solid Construction: UV-Stabilized Plastic Lens, Aluminum Body
  • Installation: Designed as a Direct Retrofit into Most Fluorescent Lamp Fixtures Using Existing Sockets. Installation requires line voltage to bypass ballast/transformer/starter directly to fluorescent sockets.
  • Even Lighting: High Intensity / No Halation
  • Safety Assurance: RoHS
 Options:  For qualified applications and large quantity orders
  • Other Viewing Angles Available: 20°-Beam, 40°-Beam, 60°-Beam
  • Other Lengths Available
  • Other Colors and White Color Temperatures Available
 Applications:
  • Office Lighting
  • Recreation Vehicle, Bus, Train Interiors
  • General Backlighting and Street Sign Backlighting
  • Task Lighting, Under Cabinets/Counters
  • Display Cases
  • Coolers, Freezers
  • Interior Design Uses
  • Retail Store Displays
  • Closet Illumination
  • Cove Lighting
  • Concealed Accent lighting
  • Edge Lighting
  • Cubicle, Workbench Lighting
Benefits:
  • Solid state: High shock / vibration resistance
  • Radiation environment-friendly: No ultraviolet or infrared radiation
  • Uses LEDs with high quality and longevity
  • Close to 50% reduction in energy usage and costs
  • No glass tube to shatter, safer for food industry applications
  • No mercury environmental hazard as with fluorescent tubes
  • Better performance in freezer applications without fluorescent failure rates
  • Longevity means major cost-of-replacement labor savings for hard to reach tubes needing lifts, ladders, or scaffolds
