LED Beacon Bulb, 360° Right Angle Illumination, E39 Mogul Base, Jelly Jar on Bridges
Less Than 22 Watt LED Unit Casts a Radial Beam
Illuminated Traffic Bollards • Globe • Hanging Pendant-Style • Hazardous Area Warning • Obstruction • Signal Beacons • Industrial Beacons • Emergency
110/120VAC; 220/240VAC; 277VAC • Emerging Green Technology
Can Be Mounted Hanging with Base Up, Sideways, or at Any Desired Angle
Shopping Cart
View Cart
Check Out
E39, Radial Luminaire E26, Radial Luminaire

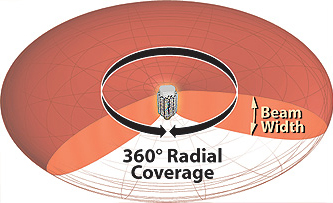

Beam Width is defined as the angle of
viewing range where the light is at least
50% to 100% intensity (2θ½).
Specifications
  • Part Number:
    BSD-1928-xxx-004
  • Beam Pattern:
    360° beam directed 90 degrees to lamp centerline
  • 50% Field of View:
    10°-to-20° above & below equatorial plane
  • Line Input Voltage:
    100-277VAC
  • Base Type:
    E39 Mogul Screw-in
  • Input Current:
    0.115A to 0.180A
  • Energy Used:
    13 to 22 Watts depending on color
  • Ambient Temperature:
    ~-22°F to ~+122°F  [~-30°C to ~+50°C]
  • Dimensions:
    H8.14 in x W4.15 in [207mm x 106 cm]
  • Weight:
    1.19 lbs [0.540 kg]
 Specifications
  • Part Number:
    BSD-1928-xxx-004
  • Beam Pattern:
    360° beam directed 90 degrees to lamp centerline
  • 50% Field of View:
    10°-to-20° above & below equatorial plane
  • Line Input Voltage:
    100-277VAC
  • Base Type:
    E39 Mogul Screw-in
  • Input Current:
    0.115A to 0.180A
  • Energy Used:
    13 to 22 Watts depending on color
  • Ambient Temperature:
    ~-22°F to ~+122°F  [~-30°C to ~+50°C]
  • Dimensions:
    H8.14 in x W4.15 in [207mm x 106 cm]
  • Weight:
    1.19 lbs [0.540 kg]
Bridge necklace
Features
Options
Applications
Contact Us
Email This Page
National Stock Number




  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




All Series under this Category:
  BSD-1928_004 E39-Mogul Indoor/Outdoor Radial-Beamed Bulb
BSD-1928_004 Series   E39-Based Luminaire / Beacon
360° Radial Light Beam1S857M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Maximum
Candela		Color Temp.
(Kelvin)		λp, nmLED Emitting
Color		Full Viewing
Angle (2θ½)
TO ORDER, CALL US
@ 800-579-4875 		BSD-1928-TPW-004
(100-277Vac,T.White,E39,)
Print datasheet.
Use website data for latest product info 		CALL 100 –277VAC,
Tested @ 120VAC		21.3 W0.179 A89.31902 lm394cd4800K~5200Kna    True White~38°@90deg.to vert.
TO ORDER, CALL US
@ 800-579-4875 		BSD-1928-0ER-004
(100-277Vac,Red,E39,18W,0.94PF)
Print datasheet.
Use website data for latest product info 		CALL 100 –277VAC,
Tested @ 120VAC		12.8 W0.115 A40.6520 lm140cdna634nm    Super Red~20°@90deg.to vert.
TO ORDER, CALL US
@ 800-579-4875 		BSD-1928-0PB-004
(100-277Vac,Blue,E39,18W,0.94PF)
Print datasheet.
Use website data for latest product info 		CALL 100 –277VAC,
Tested @ 120VAC		21.3 W0.180 A14.8314 lm123cdna455nm    Super Blue~20°@90deg.to vert.

Other Voltages available for large orders
Other Colors & Beam Angles available for large orders
All specifications and pricing subject to change without notice.
 Features:
  • Warranty: 5 Years
  • Very Low Power Consumed: Less than 22 Watts
  • Position: Lamp with Base Up, Down, or Sideways
  • Longer Life: White LEDs Last for 50,000+ Hours. Colored LEDs Last 100,000 Hours
  • Optimized Design: LEDs Are Mounted to Provide Maximum Luminance at Desired Angles to the Area to Be Lighted
  • Solid-State: High-Shock & -Vibration Resistant
  • Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
 Options:  For qualified applications and large quantity orders
  • E26 Medium Base, E27 European Base, Other Custom Bases
  • Other colors: Yellow, Orange/Amber, Green
 Applications:
  • Post top fixtures of various sizes and configurations
  • Walkway lamps
  • Lighted bollards
  • Outdoor area pendant-style lights using bulbs with the base-up
  • Warning beacons
  • Accent lighting
  • Externally switched flashing light applications
  • "Jelly-jar-style" lens enclosures. Colored lamps can be used with a matching color-tinted lens or water-clear lens
Benefits:
  • Major Energy Savings: Up to 85%
  • Maintenance-Free for over 5 Years of Continuous Use
  • Reduces Light Pollution: No Wasted Light – Eliminates Light Intrusion into Residences, Offices, Stores
  • Enhances Vision: Better Optical Acuity – Little or No Disability Glare as Compared with High Glare from HID Lamps; “Dark Skies” Initiative-Compatible
  • No Ultraviolet Emission: Does Not Attract Insects
