LED Railroad Marker Light Replacement Module
Only 2.5Watts • Mounts Directly into Starlite Model 848-A Assembly
75-VoltsDC; BA15d; 15mm Double-Contact Bayonet Base
Longevity, Low Power Demands, Ruggedness
Shopping Cart
View Cart
Check Out
PAR36-Sealed-Style PAR46-Sealed Beam-Style

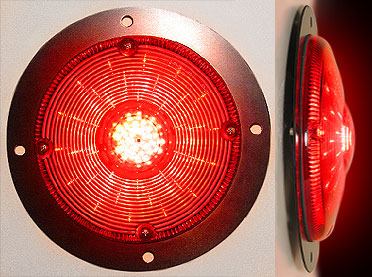

Shown in Starlite lens and fixture application.
Only the lamp is sold, not the lens and fixture.
Specifications
  • Part Number: BSD-1904-001
  • Emitted Color: Super Red
  • Peak Nanometers: 634nm
  • Beam Angle (2theta½): 16°
  • Input Voltage: 75VDC
  • Input Current: 33mA
  • Power Factor: 1.0
  • Energy Used: 2.5 Watts
  • Efficacy: 9.72 lm/watt
  • Total Lumens: 24.3 lm
  • Maximum Candela: 83cd
  • Dimensions: Diameter, Ø5.50-inches, [139.7mm] Depth, 2.16 in., [54.8mm]
  • Weight: 1.06 lbs [0.481kg]
Features
Options
Applications
Contact Us
Email This Page
National Stock Number




  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




All Series under this Category:
  BSD-1904 5½" 75V Marker Lamp; BA15d Base
BSD-1904 Series   75Vdc; BA15d Base Railcar Lamps

Replace your incandescent bulbs.
5.5-inch Diameter Round Lamp w/ BA15d Base1S868M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Total
Lumens		Maximum
Candela		Energy Used,
W		Efficacy
lm/W		Current, APower Factorλp, nmColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
Item Weight should >0
Ask a Question 		BSD-1904-001
(75V-BP,RED E4K)
(Beam characteristics with no lens)
Print datasheet.
Use website data for latest product info 		$278.00ea 5 75Vdc24.3 lm83 cd2.5 W9.720.033A1.0634nmna    Super Red16°

Other Colors (White, Yellow, Orange, Green, Blue) available for large quantity orders
Other Voltages like 24/28V, 120VAC, 240VAC available for large orders
Other LED Beam Angles for different effects available for large orders
Available in Ultra-Violet UV LEDs in 395nm or 405nm for large orders
Available in Infra-Red IR LEDs in 850nm, 880nm, 940nm for large orders
All specifications and pricing subject to change without notice.
 Features:
  • Three Year Lamp Warranty
  • Easy Installation: Mounts Directly into Starlite Model 848-A Assembly
  • LED Operating Life: Up to 100,000+ Hours (10+ Years)
  • Major Power Savings: Low 2.5 Wattage Draw Puts Less Load on Electrical System, with up to 90% Energy Savings
  • Solid-state, high shock & vibration resistant
  • Eco-Friendly: No Harmful UV or IR
 Options:  For qualified applications and large quantity orders
  • Other voltages available
  • Yellow, Green, Blue, White and other colors available
 Applications:
  • Rail Car Market Light “Starlite Model 848-A”
